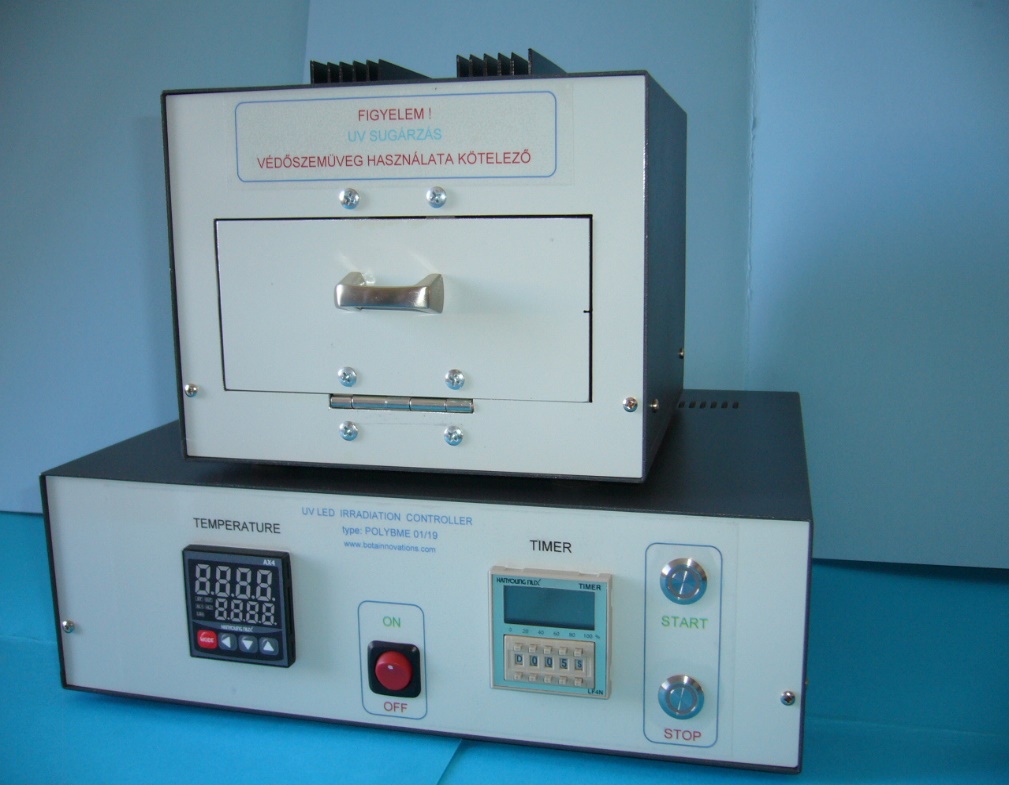

POLYBME 01-02/19 type

UV LED irradiation module and control unit
The device consists of two parts: the irradiation module and the control unit. There is a detachable wired connection between the two units.

POLYBME 01/19 control unit

The device is extremely easy to operate and safe. The operator has two buttons, START and STOP, available.

The irradiation time is programmable, the device also checks the internal temperature of the sample and switches off when the preset limit is reached.

POLYBME 02/19 irradiation modul

The irradiation module is a compact unit with an internal sample holding tray. The device is designed with a magnetic lock, thus excluding UV radiation that is harmful to the eyes and health. Irradiation can only be started when the door is closed.

Application area

Sterilization of biological and medical materials, tissue samples by UV irradiation. Technological experiments of samples of various polymers and synthetic resins. Surface, thin-layer irradiation of other material experiments by UV radiation

TECHNICAL DATA

Device power supply: 230 V 50 Hz

Device power consumption: 60 VA

UVLED emitter output power: 50 W

(Can be changed according to customer requirements)

Number of UVLEDs: 25 pcs. (5 x 5 matrix) – can be changed

UVLED radiation wavelength: between 395…405 nm – standard

(Can be changed according to customer requirements)

Distance between UVLED surface and sample tray: max. 100 mm

Maximum size of samples to be measured: max. 100 mm x 100 mm

Programmable irradiation time: 0.001 sec…99999.9 h

Automatic internal temperature control

UV LED  irradiation control device for laboratory sample
Programmable timer (T = 0.1 sec – 99999 sec) UV LED radiation power: P MAX =  150 W (optional, variable) Modular designed UV LED  radiant UV LED radiation wavelength:  l= 395 nm (optional, variable) Temperature measurement display Mechanical design – installed in BOPLA box Power consumption display Power supply: 230 V 50 Hz
Control equipment for UV LED radiant packer
4 x 20 chr. LCD display with backlight Programmable timer and configurable ALARM output LED signal ALARM limits LED on front panel display USB 2.0 port for PC connection and for configuration DIARY function with built-in background memory User GUI  software support (under Win XP, Win 7.0 op. system) GPS connection (optional) UV LED packer maximum power : P MAX = 800 W (24V DC) KO 36 – RITTAL box  (IP67) Power supply:  230 V 50 Hz
